SB - Intramark

Fémházas rugós szimering

SB is a single action rotary shaft seal for rotating. The SB model has limited sealing action with thin fluid or gaseous media and with split housings. To guarantee a high degee of static sealing on the outer surface, better surface treatment of the housing bore is required or an additional coat of paint should be applied to the outer surface.

Material

NBR 70 SHORE A

carbon steel

spring steel

Media	Mineral oils, Greases
Temperature	-35°C / +100 °C
Pressure	≤0,5 bar
Speed	12 m/s

Product advantages

good radial stiffness, especially for large diameters
good fitting stability avoiding pop-out of the seal
modern lip design provides low radial forces
cost effective for expensive elastomer materials
suitable for use in combination with axial seal (V-Ring)

Application

Sealing of rotating machine elements such as shafts, hubs and axles.transmission systems (e.g. gearboxes), pumps, electrical motors, machinery industry (e.g. tool machines), heaví engineering applications.

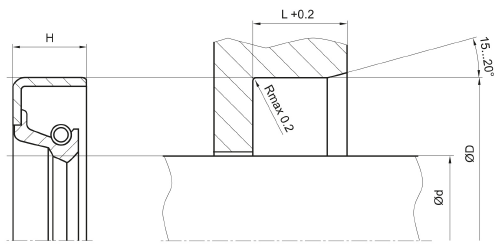

Seal housing tolerance

Ød	f8/h11
ØD	H8

Installation

Suitable tool should be used for installation. It is recommended that the installation housing is designed to provide the rotary shaft seal with axial support.
